Container Trailer

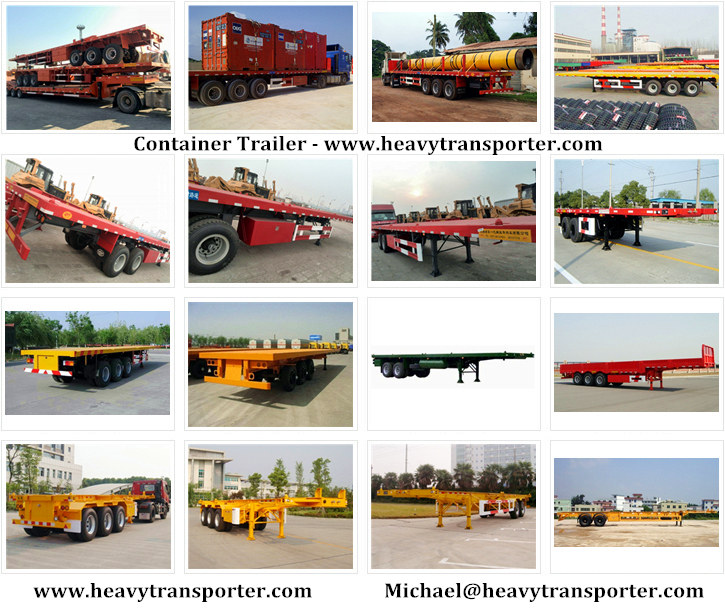

Container Trailer – www.heavytransporter.com

CAPACITY:
20 – 60 Tons capacities

CONTAINER SIZES:
– 1×40’

CONTAINER LOCK:
4,8 or 12 locks

CHASSIS AND STRUCTURE:
The chassis designed in accordance with the international transportation standards also available and prepared as having “I” section centre members are welded by submerged welding machine. They are welded between 120/12 mm bottom or top flat steel and 5 mm hub plate with high resistance to allow to obtain the highest efficiency under all road and weather conditions.

AXLES:
2-3 pcs Axles, each one is with 9-12-16 tons capacity according to the trailer drum or disc brakes, hub centric, with 10 wheel nuts, and automatic slack adjuster.

FRONT AXLE LIFTING:
Front shaft lifting system remote controlled from the driver’s seat.

BRAKE SYSTEM:
The WABCO or Haldex brand ABS or EBS brake system which is designed according to the European Standards is used. It consists of automatic brake ratchets, brake valves and brake bellows of 30.

SUSPENSION SYSTEM:
It consists of automatic height adjusting system, Parabolic Z leaf springs, Suspension bellows, shock absorbers restricting extensive shaft movements and vibrations.
Mechanical leaf spring suspension system.

ELECTRIC SYSTEM:
24 V illumination systems in conformity with the international standards, lamp with 7 functions, and electric socket with 7 pins are used. There are traffic warning panels on the vehicles.

PARKING LEGS:
Consists of double cycle telescopic legs each of which has a capacity of 24 tons.

KING PIN:
King pin compliant with SEA/DIN norms and manufactured from steel (42 Cr Mo 4) which is highly resistant to being cut, stretched and broken off is of flange type and can be disassembled and assembled back.

TIRES AND WHEEL RIMS:
Tires 6 + 1 pieces of 385/65 R 22.5 sizes. Wheel Rims 6 + 1 piece 11.75V22.5 sizes or double wheel optional to the customer demand.

STANDARD ACCESSORIES:
Water Retainer Mat, Spare tire carrier, Wheel leaning mounting, Fire extinguisher preserving cabinet.

OPTIONAL FEATURES:
BPW, SAF, Gigant Axle drum or disc axle can be preffered.
Chassis and side walls group manufactured from imported metal sheet (Hardox or Domex).
Aluminum Rims.
Tire mark according to request.
Side doors can be add to flatbed to use for otler dry loads.
