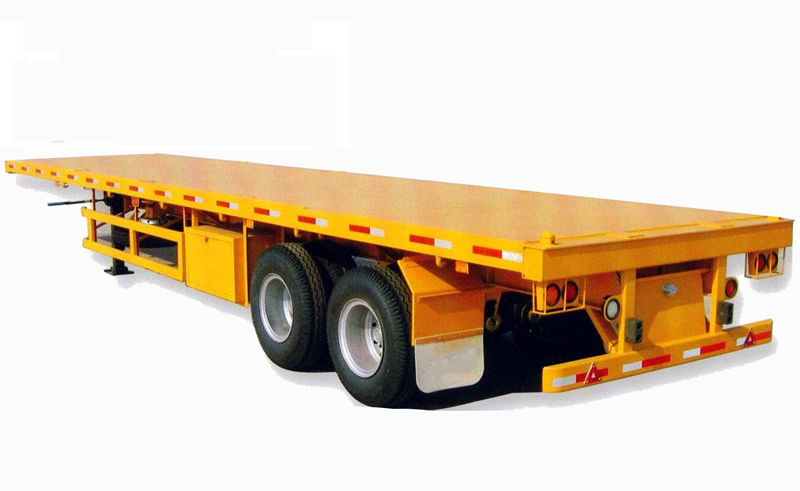

2 Axle Flatbed Container Trailer

1. Applying to the transport loose cargo light, soft, with a low center of gravity and light weight, the quality of the utilization factor, carrying capacity and other characteristics
2. Overall assembly and disassembly convienient, can be more than one car, van, car warehouse gate, tailgate car at the same time.
3. Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect. 4. Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle. 5. Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.

Description

Chassis
Steel Material   Q345B high tensile structure steel,Automatic submerged arc welded
Dimension   12405mmx2480mmx1410mm (L.W.H)
Axle   FUWA    16T  2 Pcs
Curb Weight   6,000kg
Capacity   50,000kg
Tire   10.00R20  8pcs
Suspension   Independent stamping steel rigid suspension
Leaf-spring   Heavy duty leaf spring  10Pcs
Rim      7.50–20  8Pcs
Upper Steel  14mm
lower Steel  16mm
Middle Steel  8mm
Side beam  10# channel steel
Base board steel/faceplate steel  3mm steel checkered plate
Kingpin      3.5”
Landing gear      JOST 28T  Single action  Double speed
Twist lock      12
Quality Guarantee      One year
Brake System
Dual line braking system      Brake Air Chamber: Four double chamber
Electrical System
24V, 7core socket, lights according to European standards. Equip with side and rear lightand reflective band
Accessories and Tools
One tooling box with a set of standard trailer toolOne set of spare wheel carrier.Two sets spare tire frame
Production Time: 20 workdays
Payment Terms: 30% down payment by T/T, 70% balance payment by T/T before shipment.
